Hydrographic and Bathymetric Surveying

Quantify water feature capacity
Estimate geologic reserves
Sediment deposition analysis
Construct subsurface terrain model
Mine plan optimization
Compliance verification
Thalweg & channel mapping
Depth measurement
GIS Mapping

Key Applications:

Hydrographic and Bathymetric Services

Compass' Bathymetry Services:

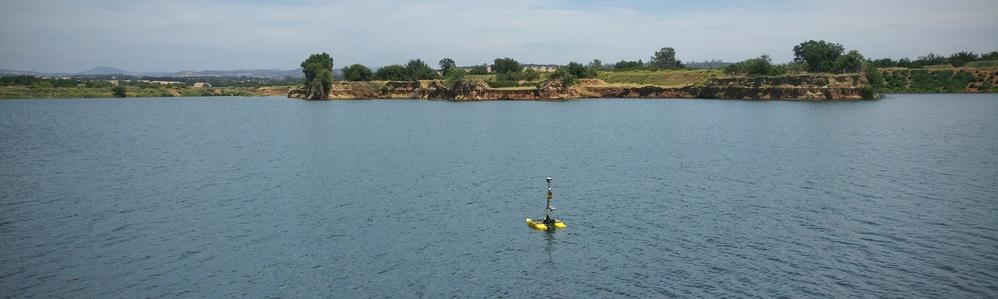

We provide hydrography and bathymetry services in lakes, pits, and other waterways. With the capability to collect and map data from both shallow and deep waters, our bathymetry services can provide useful subsurface information for a variety of applications, including mine planning, permitting, and compliance. With our mobile drone technology, we can access areas and features that are otherwise inaccessible by conventional watercraft and survey equipment. Our bathymetry deliverables are packaged with complete datasets, GIS mapping shapefiles and interpolated graphics.

Capabilities and Specifications:

Using new technologies, mapping submerged landscapes is becoming more efficient. Now a single drone pilot can capture hydrographic depth soundings without leaving the shore. Combining the bathymetric depth equipment alongside powerful survey grade GPS systems, the depth readings are accurately tied to precise coordinates in the field.

Bathymetric Data Collection

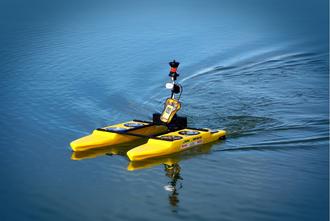

Portable remote control collection drone
Single/Multi frequency systems
Spatial accuracy of a survey grade GNSS network
Depth accuracy 1 cm / 0.1% of depth
Operating range from 0.3-200 meters

Bathymetric Data Processing

Subsurface terrain and contour models
CAD and Surpac compatible data sets
GIS mapping and shape files

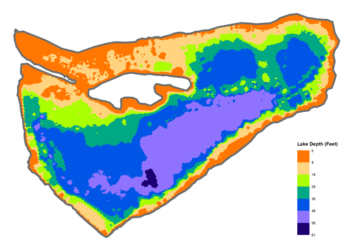

Interpolated graphics and imagery
